The UK’s transition toward low-carbon heat networks is about both scale and quality. With over 50,000 Heat Interface Units (HIUs) installed each year, ensuring these devices perform to a consistently high standard has never been more urgent. Poorly performing HIUs can impact the overall health of a Heat Network, which will subsequently lead to higher energy cost for the consumer.
That is why the BESA HIU Test Regime is such a pivotal development. Supported by government-funded research in 2016 and subsequently refined by the Building Engineering Services Association (BESA) in 2018 and 2023, the regime has transformed HIU evaluation from an opaque process into a transparent, consumer-led benchmark.
Today, it stands as the recognised measure of performance, integrated into CIBSE CP1 (2020) and increasingly influential as Ofgem prepares to regulate heat networks through the Heat Network Technical Assurance Scheme (HNTAS).
FROM VOLUNTARY SCHEME TO INDUSTRY BENCHMARK
What makes the BESA regime essential is its consumer-first approach. Established as a not-for-profit, it is entirely independent of any single manufacturer’s interests. Instead, it provides:
• Realistic testing scenarios under both high-and low-temperature conditions.
• Replicable results across approved test houses.
• Pass/fail thresholds to prevent poor performance slipping into the market.
• Best practice criteria, which set aspirational goals for manufacturers to target.
The 2023 update expanded the scope significantly. It introduced modular testing across space heating and hot water, set new performance thresholds, and strengthened the focus on return temperatures through Volume-Weighted Average Return Temperature (VWART) calculations. It includes standby energy use measurements and revised hot water response time requirements, ensuring that HIUs are judged not only on speed and comfort but also on their ability to support low-carbon efficiency in real-world networks.
This dual focus, with compliance thresholds for baseline performance and best practice for aspirational excellence, is central. Pass/fail ensures that minimum consumer expectations are met, while best practice provides a signal to specifiers and developers: if you want networks that are truly efficient, reliable, and futureproof, choose products that go further.
A STUDY IN BEST PRACTICE

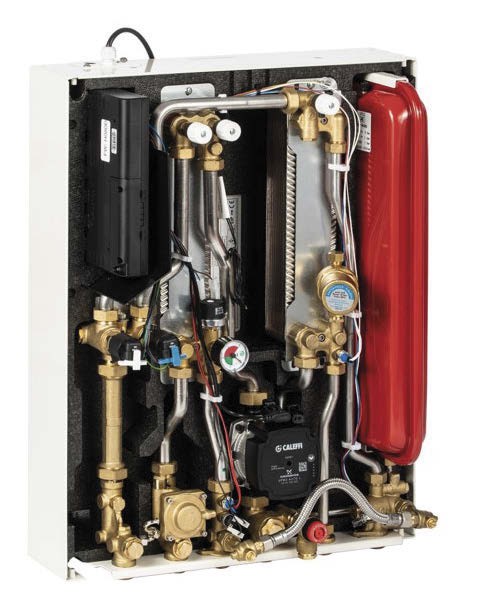

Against this backdrop Altecnic’s SATK32107 HIU has emerged as a standout performer. In the latest BESA test regime (V3-Rev001, 2023), the unit not only cleared all four indirect test modules but also achieved multiple best practice outcomes.
The test results highlight:
• DHW response times of 9 seconds (70 °C) and 15 seconds (55 °C) – within the 15-second limit, with best practice achieved under high-temperature operation.
• Standby energy losses of just 0.939–0.945 kWh/day, comfortably below the 1.0 kWh/day compliance threshold.
• VWARTs as low as 27 °C (hightemperature) and 30 °C (lowtemperature), supporting low-return, heat-pump-ready networks.
• Proven compliance across all modules (1, 2, 7 & 8) with no fail criteria triggered.
These results confirm the SATK32107 is not only compliant but futureproofed for the UK’s next generation of heat networks, where low return temperatures and efficient standby management are essential.
WHY DOES THIS MATTER?
• For consultants and developers, transparent test data allows the design of networks that are heat pump-ready (low temperature) and scalable for the decades ahead. Instead of relying on theoretical performance claims, designs can be grounded in real, replicable results.
• For operators, reliable HIUs mean networks that can deliver consistent comfort while adapting to seasonal and long-term changes in demand. As DESNEZ Heat Network Technical Assurance Scheme (HNTAS) begins to bite, the ability to evidence compliance through BESA testing will become a regulatory necessity.
• For end-users, this translates into fair bills, faster hot water, and confidence that their heating is not only reliable but aligned with the UK’s climate ambitions.
At the system level, this matters most. Lower return temperatures, reduced standby losses, and proven hot water response times are not just performance metrics, they are enablers of the low-carbon transition. They allow networks to integrate large-scale heat pumps, make better use of waste heat, and operate at the lower flow temperatures essential for efficiency.
In short, the HIUs being tested today are laying the foundation for the heat networks of tomorrow, and by extension, for the UK’s ability to meet its net zero targets.
RAISING STANDARDS BEYOND 2025
Beyond individual benefits, the BESA HIU Test Regime is driving a shift in the sector as we look to the future. By introducing strict pass/fail criteria, it prevents underperforming products from undermining entire heat networks. By setting best practice benchmarks, it challenges manufacturers to go beyond compliance and deliver products that set new performance levels.
The dual framework of pass/ fail thresholds and best practice benchmarks is already changing how manufacturers approach R&D. Compliance is no longer enough; the expectation is to exceed, to innovate, and to prove performance under scrutiny.
This is already driving outcomes:
• Return temperatures are falling, unlocking higher network efficiency.
• Standby energy use is being cut, reducing operating costs and carbon emissions.
• Hot water response times are shortening, improving consumer experience.
• Overall improvements to flow rate control accuracy at lower heating outputs.
As regulation tightens, networks expand, and net zero deadlines shorten, the BESA test regime becomes more than a quality mark, it becomes a mechanism for continuous improvement. By 2030, the sector will look back on these years as the period when HIU performance matured from variable and opaque to standardised and transparent.
Altecnic’s SATK32107 is an example of what that trajectory looks like in practice: a unit that not only passes every compliance test but performs strongly against best practice. The bigger impact of this can be seen across the market, with independently validated excellence setting the baseline for what networks, regulators, and consumers expect. As the UK accelerates its transition to low-carbon heat, the performance of HIUs will be under sharper focus than ever.
The updated BESA HIU Test Regime has provided the sector with what it lacked for so long, a transparent, independent, and rigorous framework that separates proven performance from marketing promise. It has set a baseline for compliance, while also pointing towards best practice that challenges manufacturers to innovate.
For consultants, developers, and operators, the value is clear: reliable data to inform design, specification, and long-term operation. For end-users, it means networks can deliver what they promise, efficient systems, lower costs, and fast, dependable hot water.
And, at the system level, it ensures that networks are not just functional today, but ready to integrate the low-carbon technologies essential for tomorrow.
www.altecnic.co.uk SB
