Hydraulic separation is one of those concepts that many designers and installers know of, but don’t always fully apply. When systems are simple, that might not cause immediate problems. But as soon as you introduce modern boilers, heat pumps, multiple pumps, or variable flow distribution, poor hydraulic design quickly shows itself—through noise, unstable temperatures, flow complaints and control issues.
Many hydronic systems today use compact, high-efficiency boilers or heat pumps as their heat source. Unlike traditional cast iron boilers, these appliances typically have much higher internal flow resistance.
Problems arise when a high-resistance heat source is simply swapped into an existing system that was designed around low resistance equipment. Designers may assume that each heating zone behaves as a stand-alone circuit, with flow determined only by the zone pipework and its pump.
In reality, that assumption ignores a critical fact: all zone flows must pass through the heat source.
When multiple zones operate simultaneously, the boiler or heat pump becomes a hydraulic bottleneck. The more circuits calling for heat, the more severe the restriction becomes. This leads to:
• Reduced flow rates in individual zones
• Under-heating and slow warm-up times
• Temperature imbalance across the system
• Noise and pump interaction
• Customer complaints about poor performance.
Without hydraulic separation, pumps begin to interfere with one another, causing unpredictable system behaviour.
WHAT IS A HYDRAULIC SEPARATOR?
When a single system contains a primary production circuit, with its own pump (or more than one), and a secondary user circuit, with one or more distribution pumps, operating conditions may arise in the system whereby the pumps interact, creating abnormal variations in circuit flow rates and pressures.
The hydraulic separator creates a zone with low head loss, which enables the primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow in the other if the head loss in the common section is negligible.
In this case, the flow rate in the respective circuits depends exclusively on the flow rate characteristics of the pumps, preventing reciprocal influence caused by their connection in series. Therefore, using a device with these characteristics means that the flow in the secondary circuit only circulates when the relevant pump is on, permitting the system to meet the specific load requirements at that time.
When the secondary pump is off , there is no circulation in the secondary circuit; the whole flow rate produced by the primary pump is by-passed through the separator.
With a hydraulic separator, it is therefore possible to have a production circuit with a constant flow rate and a distribution circuit with a variable flow rate; these operating conditions are typical of modern heating and air-conditioning systems.
The possible hydraulic balance situations are shown below.
TYPICAL DESIGN MISTAKES
Systems lacking hydraulic separation often show the same recurring issues:
• Pumps sized larger than necessary to “force” flow
• Excessive noise from valves and pipework
• Short cycling of boilers or heat pumps
• Unstable supply temperatures
• Poor control response in BMS-managed systems.
These problems are not usually
equipment faults – they are hydraulic design faults.
HYDRAULIC SEPARATION AND HEAT PUMPS
With heat pumps playing a central role in the decarbonisation of heating, hydraulic separation is becoming even more critical.
Heat pumps are especially sensitive to incorrect flow conditions. In systems where a booster or distribution pump is required, separating the primary and secondary circuits is strongly recommended to prevent pump interference caused by differing flow rates and head pressures.
A correctly selected hydraulic separator helps ensure:
• Stable flow through the heat pump
• Reliable temperature control
• Improved efficiency and seasonal performance
• Reduced risk of flow-related fault codes.
Many modern separators also provide integrated dirt and air separation, adding further protection for sensitive heat pump components.
LOW LOSS HEADERS VS HYDRAULIC SEPARATORS
Low loss headers and hydraulic separators perform the same core function: hydraulic decoupling. In commercial systems, they are typically used when:
• Multiple pumps operate in the same system
• Variable flow distribution is required
• Large plant rooms demand stable control behaviour
• Heat sources require guaranteed minimum flow.
Separation simplifies pump sizing, because each pump is selected only for its own circuit – not for the combined resistance of the entire system. This leads to more accurate design, lower energy consumption and better long-term reliability.
From a controls perspective, separation improves stability, reduces hunting, and makes temperature regulation far more predictable.
FINDING THE RIGHT HYDRAULIC SEPARATOR
Modern hydraulic separators can do much more than simply decouple circuits.
The Caleffi 548 and 549 series hydraulic separators keep primary and secondary circuits hydraulically independent while combining multiple essential functions in one compact component:
• Hydraulic separation for stable flow control
• Dirt separation to collect system impurities
• Deaeration, removing micro-bubbles via low-velocity flow and internal mesh
• Ferrous particle removal using an integrated magnetic system.

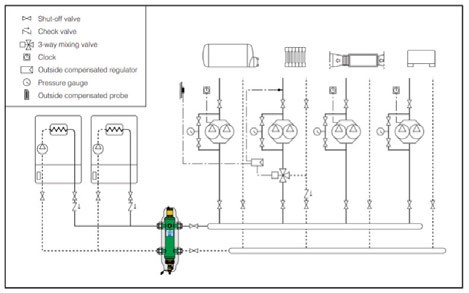

These features help protect pumps, heat exchangers, valves and controls from long-term damage. Available up to 50mm in the SEP4 549 series, these separators are supplied with pre-formed insulation to minimise heat loss and prevent condensation, making them suitable for both heating and chilled water applications (see the application example above).
WHY HYDRAULIC SEPARATION IS NO LONGER OPTIONAL
As systems become more complex and efficiency targets more demanding, hydraulic separation becomes a fundamental design tool that:
• Prevents pump interference
• Improves comfort and system reliability
• Simplifies commissioning and troubleshooting
• Enhances control stability in commercial buildings
• Supports efficient operation of boilers and heat pumps.
In short, hydraulic separation makes modern hydronic systems behave as they were intended to.
