Modern buildings require glazing that provides a range of benefits, balancing safety, comfort, sustainability and design flexibility. For specifiers, understanding the different performance requirements is essential to making informed choices that support both compliance and architectural needs.
When specifying fire safety glass, it is important to understand the different levels of performance. Fire safety glazing can be designed to achieve E (integrity), EW (integrity and radiation) or EI (integrity and insulation) classifications. This offers varying levels of protection, from preventing the passage of smoke and flame (E) to preventing smoke and flame while also reducing radiant heat transmission (EW), or maintaining full thermal insulation by limiting temperature rise on the non-fire side (EI).
The correct classification depends on the building type, layout and regulatory requirements. Modern laminated firerated glass systems allow specifiers to meet performance requirements without compromising on design quality, transparency or fire protection.
MEETING FIRE PERFORMANCE REQUIREMENTS
Historically, Georgian wired glass was the standard solution for fire-rated applications. While effective at providing basic fire integrity, the glazing’s performance was limited to preventing the passage of flames and smoke and it offered little in terms of thermal or visual performance.
Today’s fire-rated glazing has evolved significantly. By integrating reactive intumescent interlayers, modern glazing systems can achieve enhanced (EW and EI) fire classifications. In the event of a fire, interlayers react to heat, forming an insulating barrier that not only blocks flames and smoke but also significantly reduces the transmission of radiant heat.
This reduction in heat plays a crucial role in maintaining safer evacuation routes and limiting the chance of igniting soft flammable materials like carpets, offering a far higher level of protection than historic fire-rated glass solutions.
TODAY’S ARCHITECTURAL DEMANDS

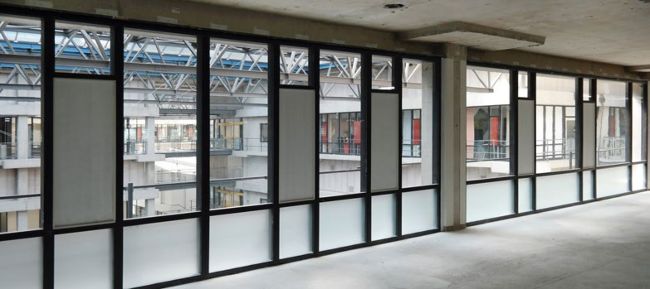

Open and light-filled spaces are a popular trend in modern architecture. Research shows that access to natural daylight can improve mood, productivity and overall wellbeing, leading to the replacement of solid partitions with glazed alternatives.
However, as spaces become more visually open and transparent, controlling noise transmission becomes essential to maintaining some level of privacy. Because of this, the multiple interlayers can also deliver strong acoustic performance alongside fire protection.
For example, specifying a glazed partition with an Rw value of 30dB in an area where noise levels reach 70dB can reduce perceived sound to around 40dB. This creates a noticeably quieter and more comfortable environment, without sacrificing transparency or fire safety.
IMPROVING ENERGY EFFICIENCY
Sustainability is now a central focus in building design, making the energy performance of glazing a key consideration.
Energy efficiency can be enhanced through the use of double-glazed units combined with solar control or thermal coatings. These coatings can reflect the sun’s UV and solar radiation away from the building during warmer months, while also helping to retain heat in colder conditions.
By incorporating solar control, thermal insulation and low-emissivity coatings, specifiers can support improved temperature regulation, reduce energy consumption and lower long-term operational costs. These features also contribute to achieving sustainability targets and meeting increasingly demanding environmental standards.
ACHIEVING PERFORMANCE WITHOUT COMPROMISE
Modern glazing solutions offer a level of performance and flexibility that was simply not possible with traditional wired glass. Today’s fire-rated glazing can deliver enhanced fire safety, acoustic performance and thermal insulation while enhancing the aesthetics of a project.
By taking into account the many different performance factors that modern fire safety glazing can offer, specifiers can ensure that buildings are safer, more comfortable and more sustainable. www.pyroguard.eu
