The UK’s famously unpredictable weather has long shaped how we build. But with the Met Office reporting a measurable increase in rainfall and more intense weather events, designing for moisture resistance has never been more important. For specifiers, understanding exposure zones and how they influence wall design and insulation is key to ensuring buildings remain durable, efficient, and compliant.
Wind-driven rain can penetrate masonry walls, causing penetrating damp, damaging internal finishes, and encouraging mould growth. Its severity varies across the country and even between elevations on the same building. The Building Regulations – particularly Approved Document C – provide clear guidance on how to design for exposure and moisture control, but translating that into robust, practical wall specifications requires more than compliance alone.
Approved Document C (Site preparation and resistance to contaminants and moisture) divides the UK into four exposure zones from ‘Sheltered’ to ‘Very Severe’, according to the amount of wind-driven rain measured in litres/m2 /spell. These classifications provide a framework for assessing how exposed a site or elevation is likely to be.
For more accurate, site-specific evaluations, BS 8104 offers a methodology for calculating exposure levels. This considers local factors such as elevation, topography, and sheltering features. A site on an exposed coastal headland, for instance, will have a very different exposure rating from one in a suburban valley. Crucially, exposure isn’t uniform across a single building. Walls facing the prevailing wind, or on higher ground, may require enhanced protection compared with sheltered elevations.
DESIGN IMPLICATIONS FOR THE BUILDING ENVELOPE Exposure also affects more than cavity insulation choice. It informs a wide range of design and detailing decisions, from the selection of wall facings and renders to roof design, parapet detailing, sills, and copings. Getting this right at the specification stage reduces long-term maintenance issues and improves resilience against moisture ingress.
For wall construction in particular, the higher the exposure, the more robust the design must be. In severe and very severe zones, wider cavities are needed to prevent moisture penetration. Facing materials also play a vital role. Mixed finishes, such as a combination of render and facing brickwork, can perform well in high-exposure areas if joints are flush and detailing is carefully executed. Recessed joints and flush sills or copings are only suitable for sheltered or moderate zones where the risk of wind-driven rain is low.
Specifiers should consider how small changes in detailing can dramatically influence performance. Effective water management through correctly designed sills, drips, and overhangs can prevent saturation and prolong the life of the wall. The choice of render system should match the exposure classification, with higher-performance formulations specified for more exposed façades.
PARTIAL OR FULL-FILL CAVITIES? Approved Document C provides guidance on the maximum exposure zones suitable for different masonry cavity wall constructions. Partial-fill and full-fill systems can be viable across the UK, but the choice depends on the balance of thermal performance, buildability, and moisture resistance. In more severe exposure zones wider cavities are required, which is where the choice of insulation becomes especially important. A 150mm full-fill cavity insulated with glass mineral wool provides an effective solution for both thermal and moisture performance. It meets the updated U-value requirements of Approved Document L (Conservation of fuel and power) while maintaining compliance with moisture resistance requirements under Document C.

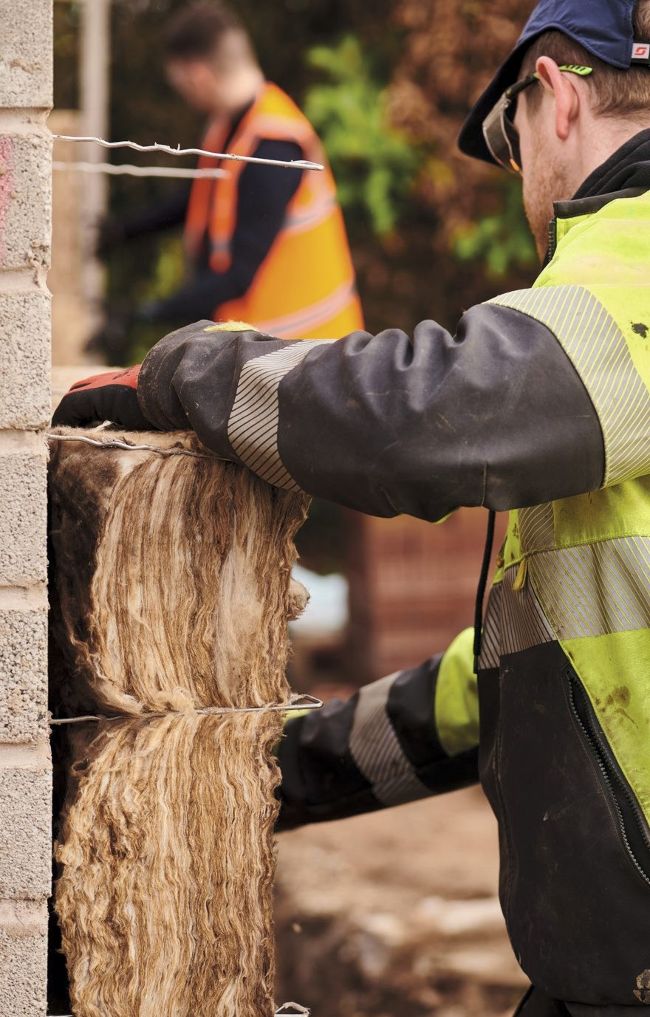

Full-fill mineral wool insulation has several practical advantages over partial-fill systems. Its flexible composition allows it to accommodate irregularities in the masonry substrate and ensure a continuous fit. The fibres knit togetherat joints to minimise air gaps, reducing the risk of thermal bridging and moisture ingress. Compared with rigid boards, which need precise cutting and taping to maintain integrity, mineral wool is faster to install correctly and more forgiving on site.
A 150mm cavity wall can be used to achieve compliance in every exposure zone with a variety of external wall finishes including facing masonry, render and cladding. A consistent cavity width across a project also simplifies detailing and procurement, while ensuring every elevation can meet or exceed the performance standards required for its exposure rating.
Climate projections suggest the UK will continue to experience wetter winters and more intense rainfall events in the decades ahead. This reinforces the need for architects and specifiers to prioritise robust, moisture-resilient wall designs now. Designing to the upper limits of exposure, rather than to the average, ensures buildings can cope with future conditions as well as current ones. www.knaufinsulation.com
